INCLINED OPEN CHANNEL UV DISINFECTION SYSTEMS

INCLINATION OPTION ENABLES UP TO 30% MORE DEPTH OPTIONS

INCLINED OPEN CHANNEL UV DISINFECTION SYSTEMS

SECURE TOP COMPARTMENT FOR EASY MAINTENANCE

GUARANTEED ULTRATHERM™ 16 000 HOUR LIFETIME

ULTRAAQUA UV LAMP BANKS CAN BE EXTENDED TO TREAT FLOWS OF ANY SIZE

INTRODUCTION

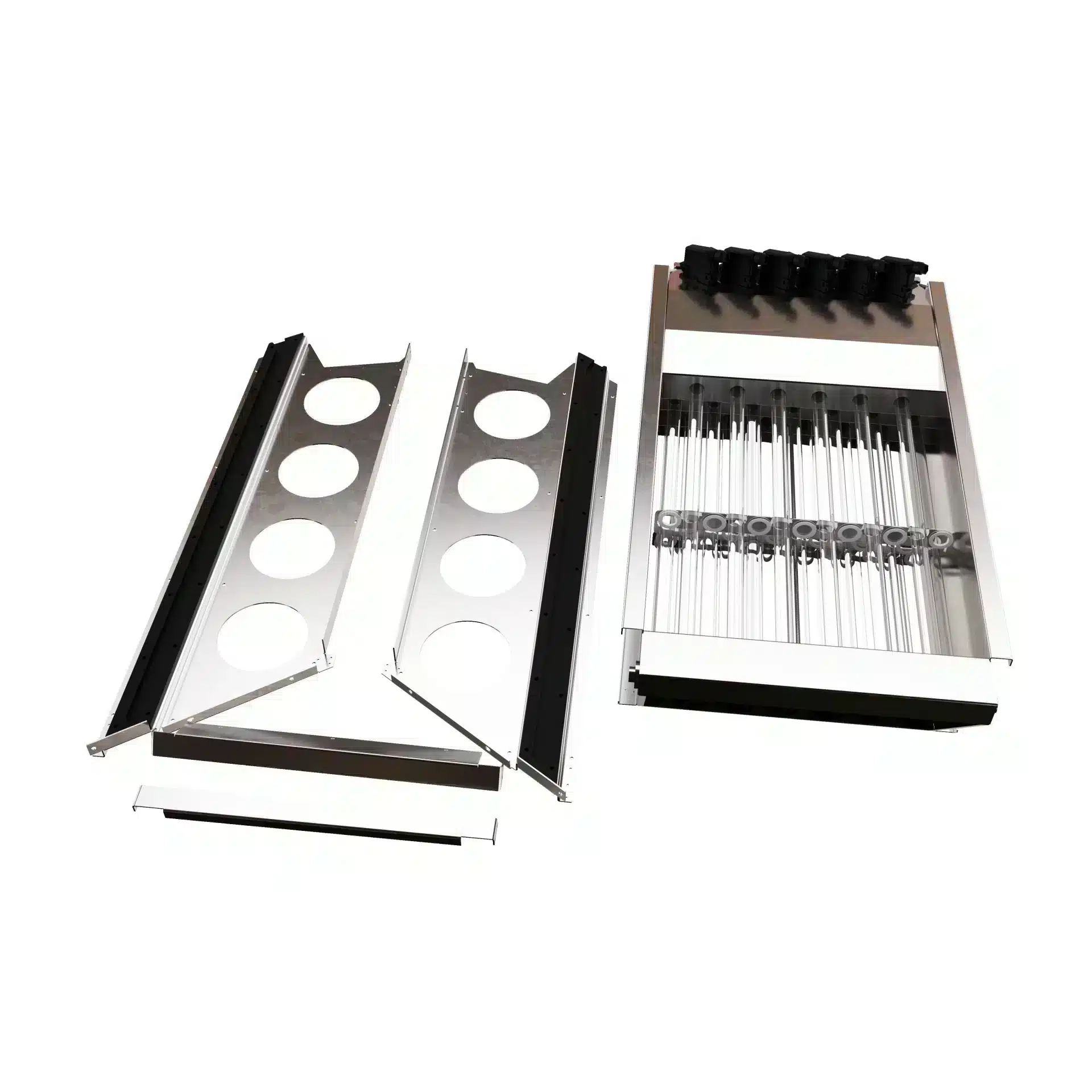

INCLINED OPEN CHANNEL UV SYSTEMS

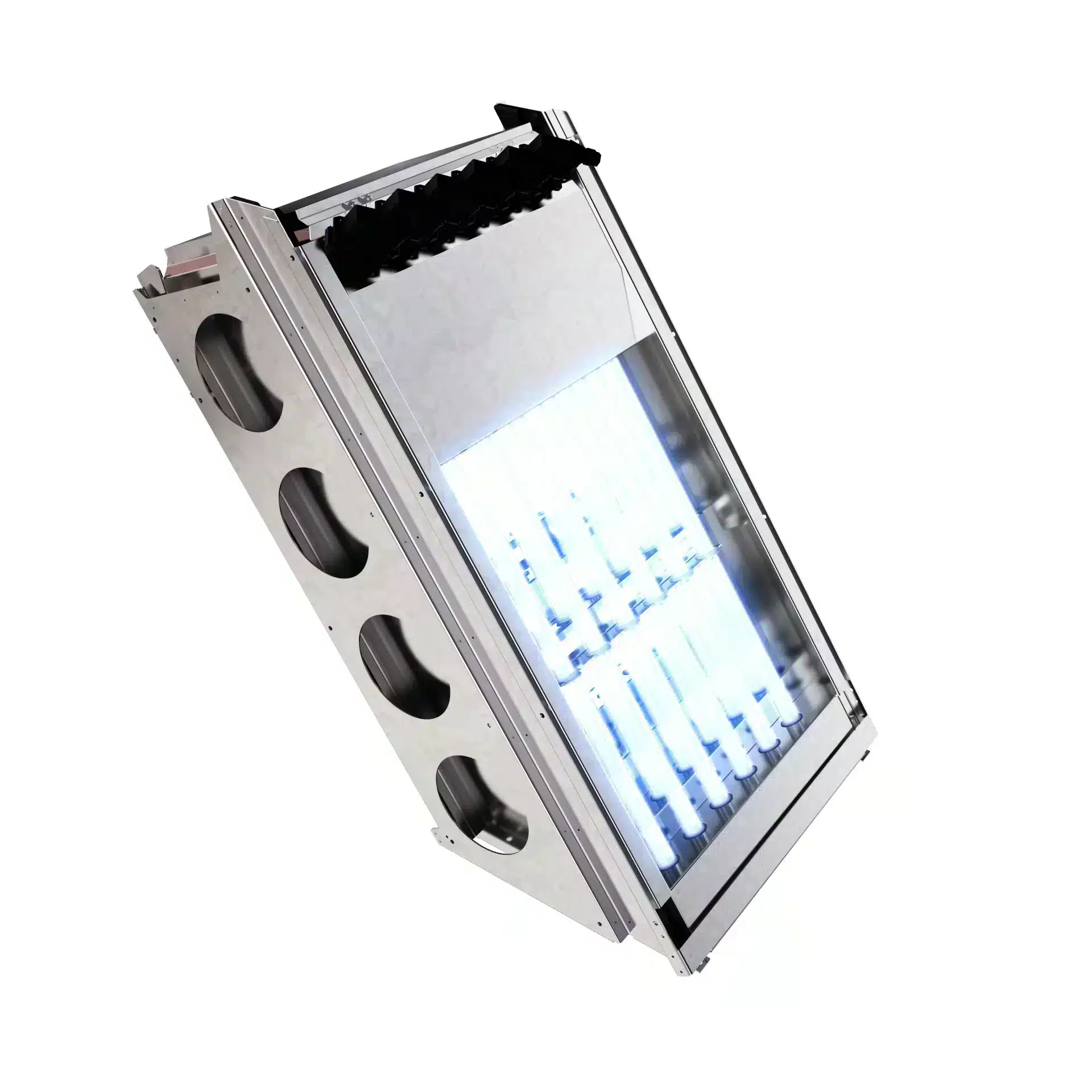

In 2001 the first inclined UV channel systems were engineered because of the industry’s dire need for a higher range of water level installations within municipal and industrial effluent applications. Since then, the design has been optimized and the latest inclined UV lamp bank design provides users with up to 30% more depth options.

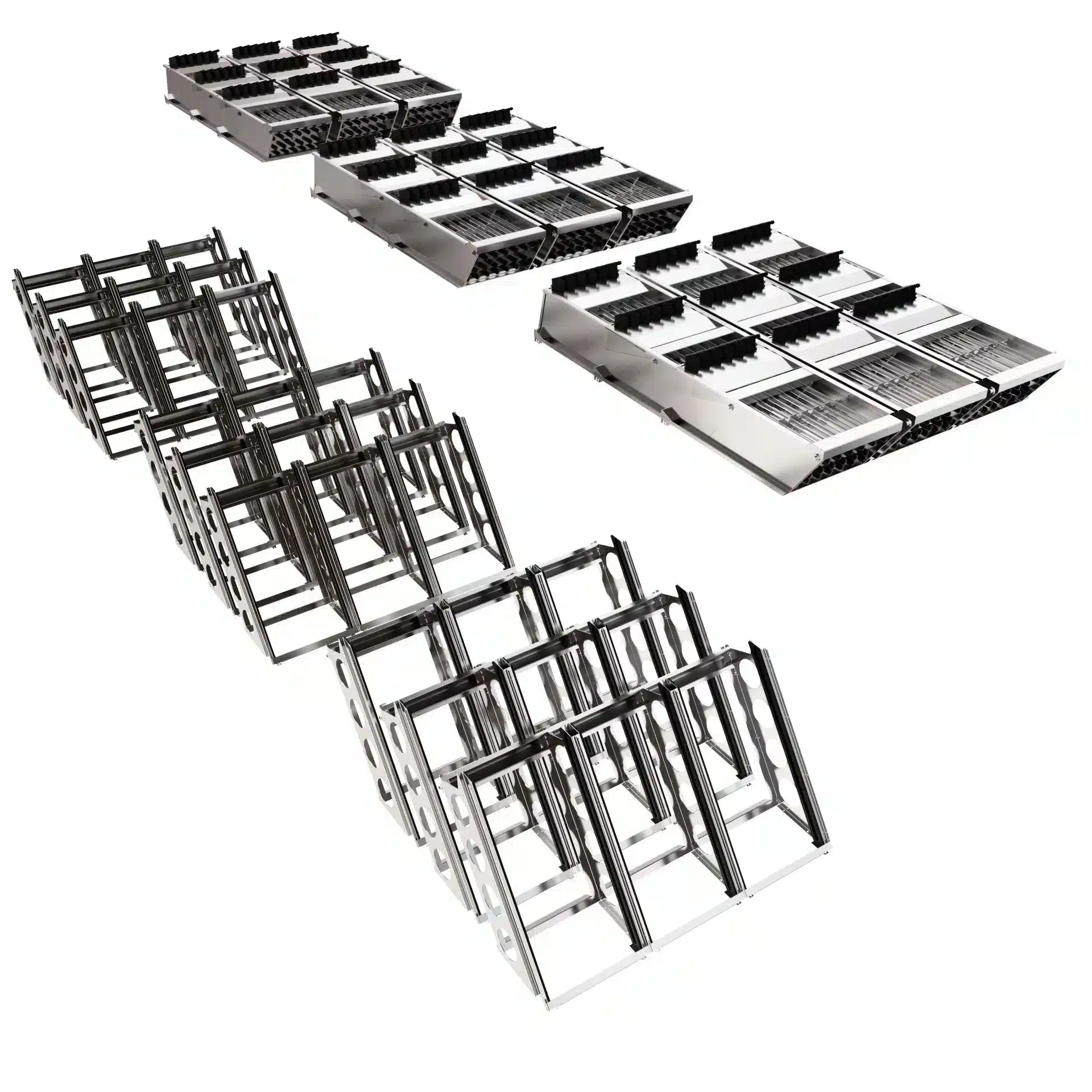

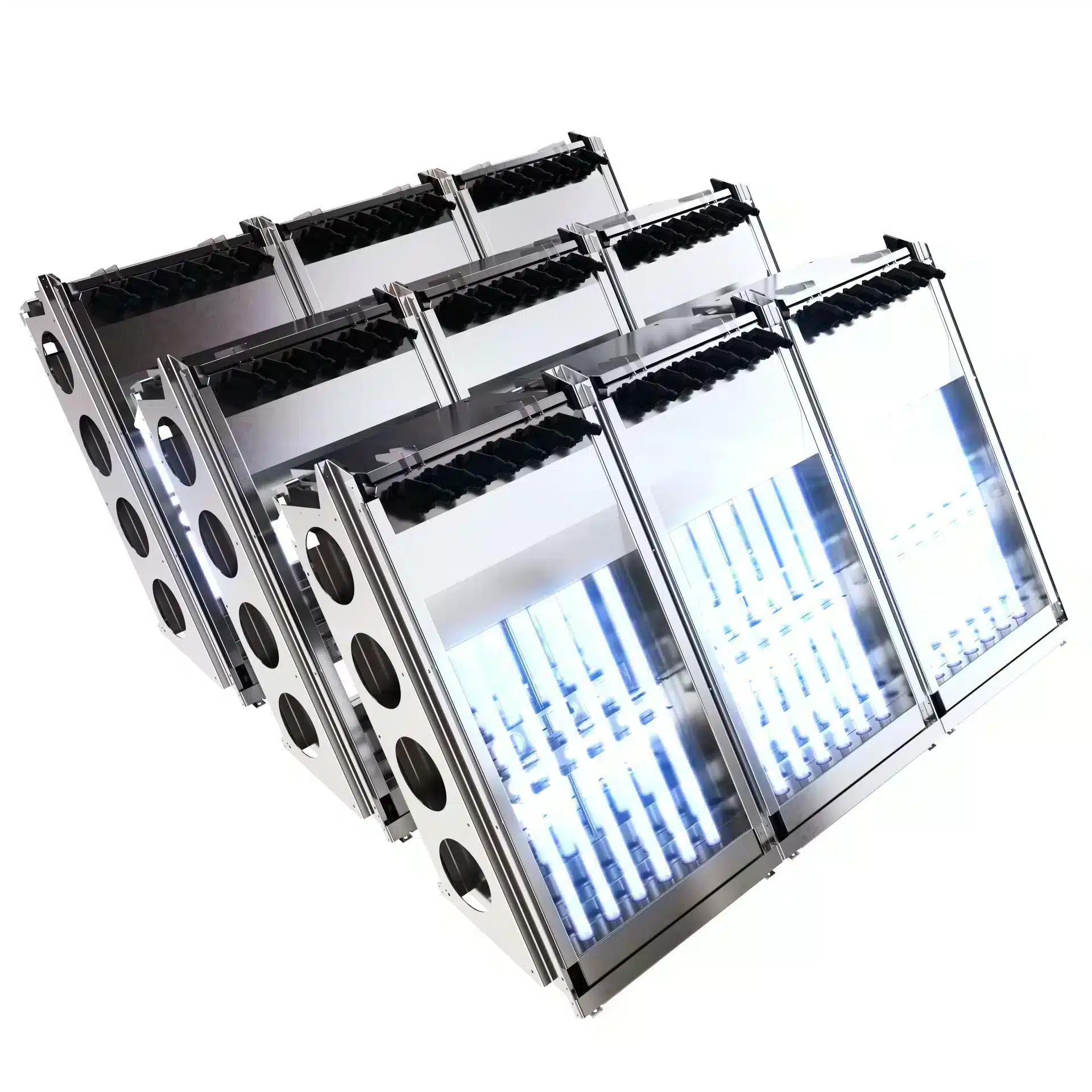

This results in advanced design scalability and customization since the users can adjust not only the width but also the height of the channel UV units. For clients with already existing water treatment infrastructure, the new design helps to save on additional construction costs, as inclined channels can be easily integrated into chlorine contact tanks or replacing old horizontal type open channel UV systems. Upon installation of multiple lamp banks, the users also get an extra design advantage: a seamless disinfection path with no empty spaces in-between banks – meaning the water is exposed to UV across its entire disinfection path.

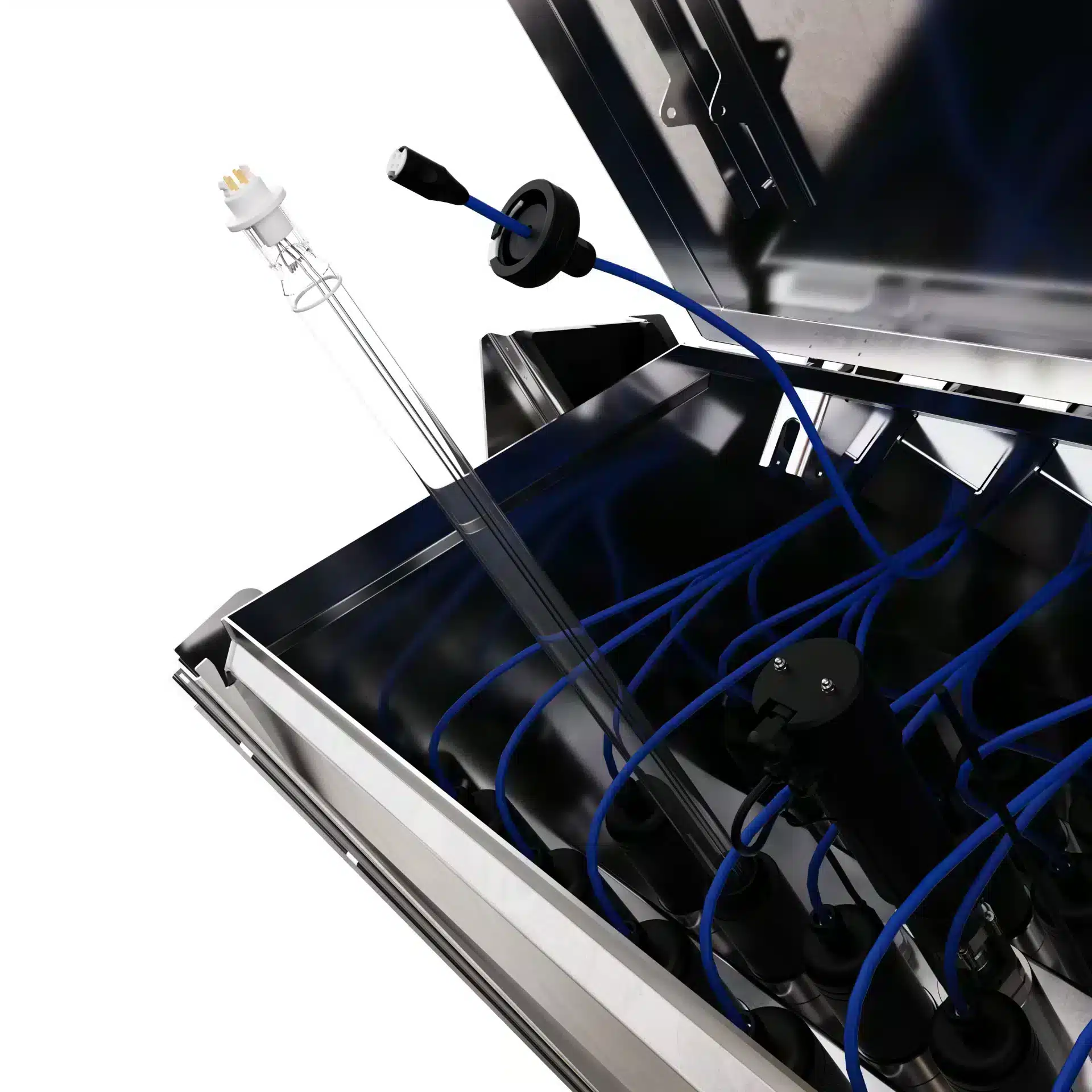

The inclined channel units, as well as vertical, has a sealed top compartment where the lamps, quartz sleeves, wiping motor, and UV sensors are easily accessible without a need for any tools. This allows for quick, easy, and hygienic maintenance procedures without the need of removing the channel out of the water. Equipped with automated ULTRAWIPER™ feature to keep quartz sleeves clean, inclined channel units require minimal annual check-up and maintenance.



Key highlights

  • Ideal for up to 30% lower water levels and already laid out infrastructure
  • High level of design versatility – retrofitting in various channels depths’ and widths
  • CFD optimized cross-line lamp arrangement – complete pathogen exposure with enhanced energy efficiency
  • No by-product disinfection option ideal for reclamation water treatment
  • High level of customization – modular design and control system
  • 16 000-hour ULTRATHERM ™ lamp lifetime
  • Array lamp layout – ultimate pathogen exposure and reduced lamp number
  • ULTRAWIPER™ – automated quartz sleeve wiping system
  • Hygienic isolated top compartment for maintenance allows for easy access to all UV lamps without the need to lift lamp bank out of water
  • Optional environment control equipment – UVT meter, UV water level sensor, weir flow meter
  • The advanced screen provides UV dose, flow size, and power level parameters
System Characteristics
Lamp configuration Inclined
Material Electropolished SS 316L, Super duplex
Configuration Modular
Pressure rating Gravitational
Flowrates 5 m3/h (22 GPM) – 16000 m3/h (100 MGD)
UV transmission (UVT%) 20 – 100%
Lamp type ULTRATHERM™ Low-pressure High Output (LPHO)
Lamp lifetime Guaranteed 16 000 hours
Control cabinet characteristics
Enclosure material Painted steel, SS304, SS316L, GFRP
UV intensity sensor ÖNORM certified, PTFE, 360 degrees
Sleeve wiping Manual, automatic ULTRAWIPER™
SCADA connection Profibus, Profinet, MODBUS TCP/IP
Enclosure rating IP54, IP65
Lamp driver type Electronic variable output
System voltage 1x230V, 3x400V+N+Pe +/- 10%, 47-63Hz (other optional)
UV dose pacing Optional
HIGHLIGHTS

INNOVATION MEETS FUNCTIONALITY

INDUSTRY PIONEERS – UP TO 30% LOWER WATER LEVELS

INDUSTRY PIONEERS – UP TO 30% LOWER WATER LEVELS

ULTRAAQUA UV is probably the first in the industry to develop inclined channel UV systems. The new design eliminates the need for additional construction costs for the lower water channels – providing 30% more depth versatility compares to the standard UV channel lamp banks.

CONTROL CABINET INTELLIGENCE

CONTROL CABINET INTELLIGENCE

All ULTRATOUCH™ control cabinets have a range of closure material options and are designed for even the most challenging industrial environments. The ULTRAAQUA UV systems can be controlled from SCADA via MODBUS™ or Profinet/Profibus. ULTRADOSE™ pacing technology automatically adjusts UV intensity based on real-time data. High-resolution multicolor touchscreen with UV dose, flow, UVT, and power level indicators.  PLC’s event and performance log are saving the information for further analysis.

ADVANCED CUSTOMIZATION

ADVANCED CUSTOMIZATION

All ULTRAAQUA UV open channel UV systems can be customized to accommodate specific project requirements or to fit existing water treatment infrastructure. Inclined UV lamp bank provides additional customization convenience as it enables not only width but also height customization.

WORLDWIDE TECHNICAL SUPPORT

WORLDWIDE TECHNICAL SUPPORT

With years of experience and international presence, ULTRAAQUA UV can provide support and guidance for even the most challenging water treatment applications in the range of climates. The company’s overseas offices and highly skilled distributor network enable the company to not only deliver specifically select solutions but also well-rounded after-sales experience with general technical support, product training, spare parts, and others.
