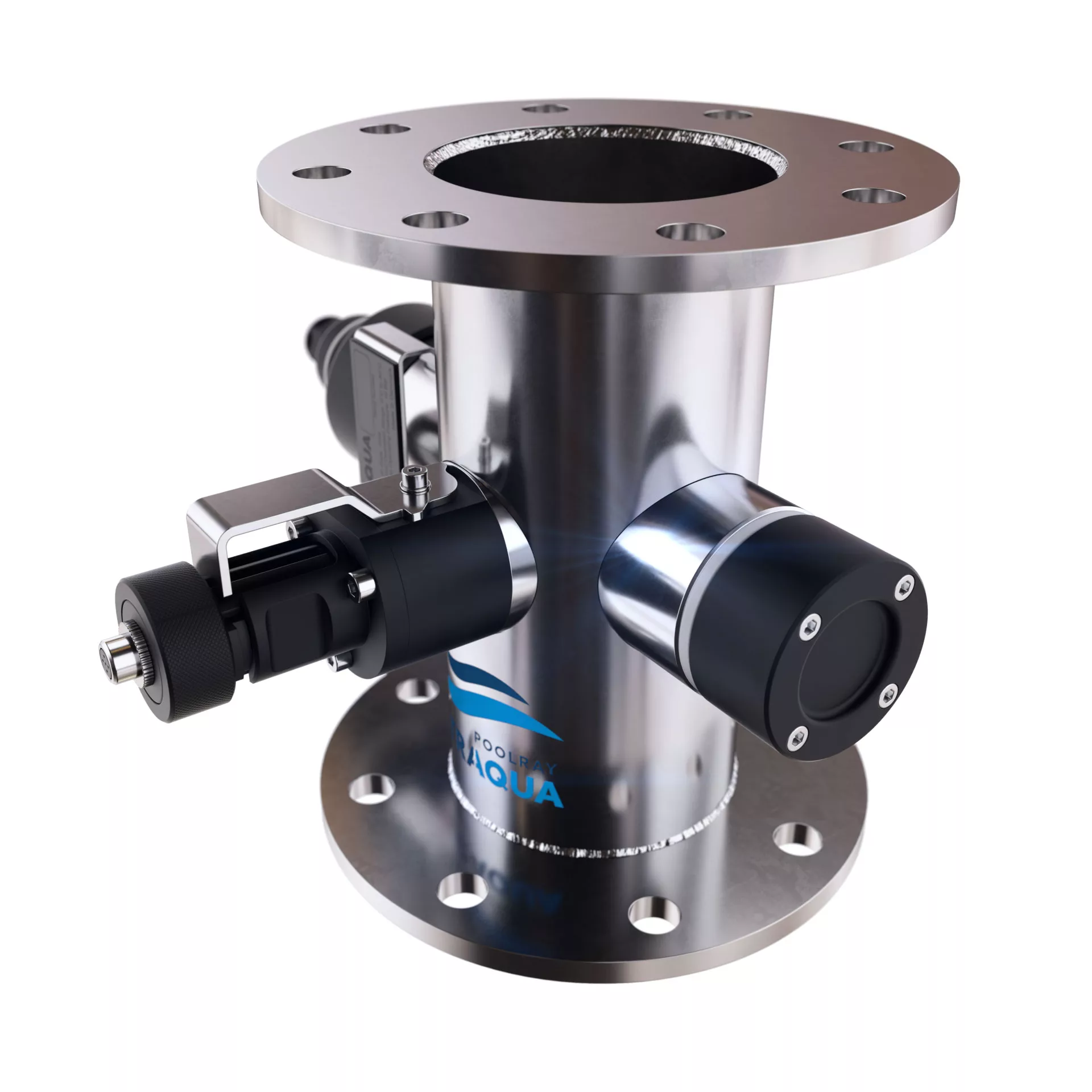

ELECTROPOLISHED STAINLESS-STEEL AISI 316L REACTOR
EASY MAINTENANCE AND INSTALLATION

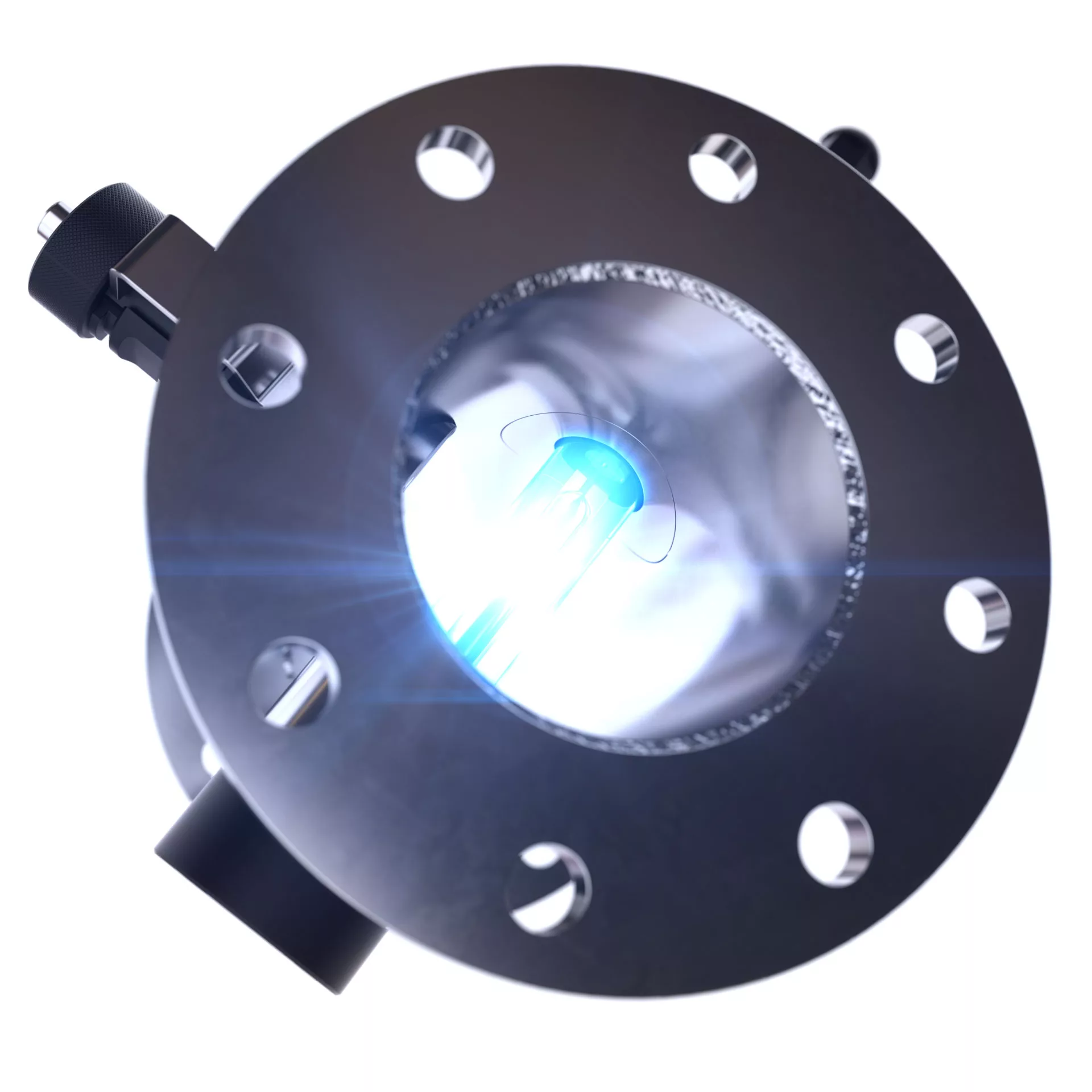

CFD-OPTIMIZED LAMP POSITIONING
AUTOMATIC DOSE PACING TECHNOLOGY
9.000-HOUR LAMP LIFETIME
HORIZONTAL OR VERTICAL MOUNTING
MULTIPLE FLANGE OPTIONS
System Characteristics | |
---|---|
Reactor configuration | Inline (installation horizontal or vertical) |
Material | Electropolished SS 316L / 1.4404 |
Inlet/outlet connection | 2,5 BSP - DN100 |
Pressure rating | Max. 10 bar |
Flowrates | 1 m3/h – 90m3/h |
UV transmission (UVT%) | 80 – 100% |
Lamp type | ULTRATHERM™ Medium-pressure |
Lamp lifetime | 9 000 hours |
Control cabinet characteristics | |
---|---|
Enclosure material | Painted steel, SS304, SS316L, GFRP |

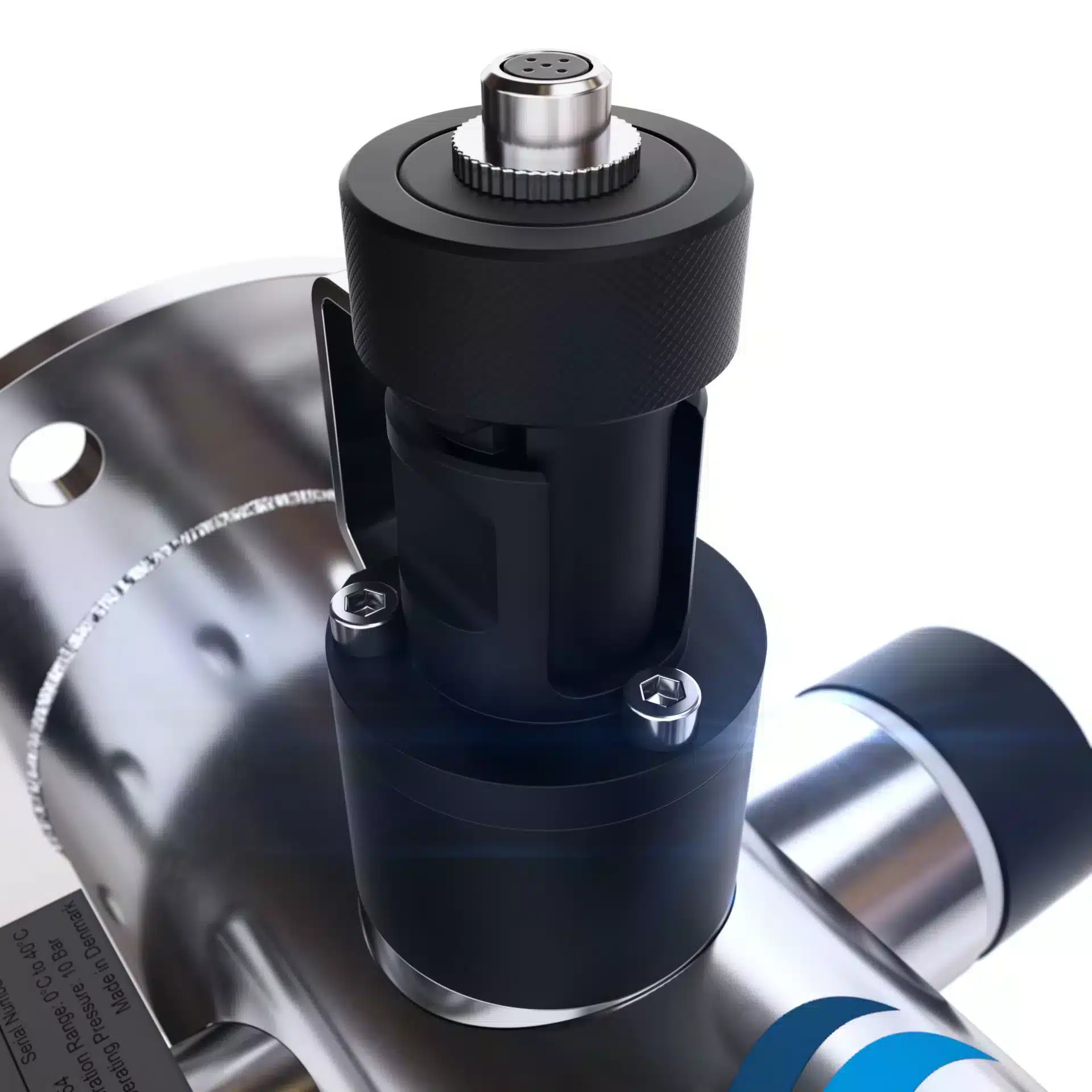

UV intensity sensor | Pool Optimized UV sensor, 360 degrees |
Sleeve wiping | N/A |
SCADA connection | MODBUS TCP/IP |
Enclosure rating | IP54 |
Lamp driver type | Electronic variable output |
System voltage | 1x230V, 3x400V+N+Pe +/- 10%, 47-63Hz (other optional) |
UV dose pacing | Optional |
